Описание
• High performances
• Modularity
• Easy and quick to install
• Easy maintenance
• Reliability
• Low energy consumption (EC version)
MAIN APPLICATIONS
• Small size commercial buildings
• Office buildings
• Food and non-food retail
• Hotels
DESCRIPTION

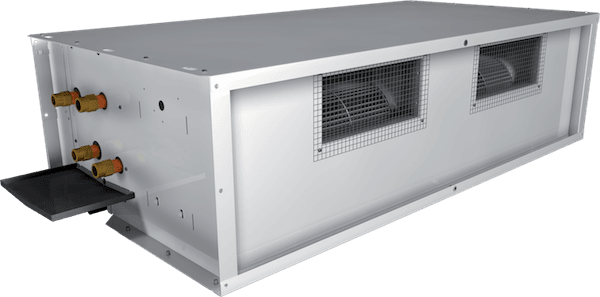

• High pressure ductable air treatment unit for installations requiring medium to high static pressure
• Available in:
– 7 sizes,
– horizontal (H) or vertical (V) installation,
– 2 or 4 pipes,
– with EC or AC fan,
– single or double skin version
• Reduced height for installation in suspended ceiling (horizontal version).
MAIN COMPONENTS
• Main structure in galvanized steel, 10/10 mm thickness with internal insulation (10 mm polyurethane foam EN 13501-1 Euroclass B-s2, d0 / BL-s1, d0)
• Double skin panels, 15 mm thickness in galvanized steel inside, white pre-painted galvanized steel outside. Thermal and sound insulation with 35 kg/m3 density mineral wool (double skin version only).

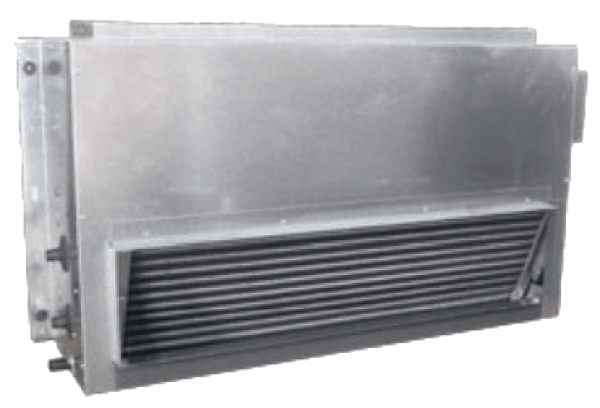

• Water coil (copper with aluminum fins) provided with manual air vent.
• Double direct driven centrifugal fan (with EC or AC motor).
• Galvanized drain pan
ACCESSORIES
• G3 or G4 filter
• Auxiliary coil for 4 pipe installation
• 6 rows main coil
• 2 or 3 way valve ON/OFF or 24V 3 points or modulating 24V 0-10V
• Electric heating section (4,5 to 19,2 kW)
• Humidification section
• Supply and air return plenums
• Fresh air connection 100 or 125 mm
• Auxiliary condensate drain pan
• Condensate drain pump
• Stand alone or communicating controls
